New Piper Camshaft Cosworth YB BP320MB - Naturally Aspirated by Piper Cams

Code COSBP320MB
£0.00
£686.82
Inc VAT
£0.00
£572.35
Exc VAT
Click the image to enlarge
Code COSBP320MB
Sorry! We're out of stock
£0.00
£686.82
Inc VAT
£0.00
£572.35
Exc VAT
Save
Earn 0 reward points with this product.

Sorry we're out of stock!

Enter your email address below and we’ll notify you as soon as it becomes available.

  • Description

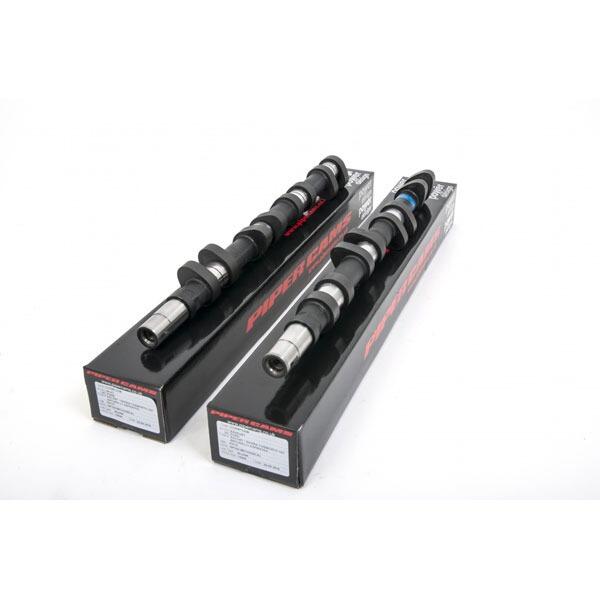

    New Piper Race Camshaft Cosworth YB BP320MB for Naturally Aspirated Engines With Mechanical Followers.

  • Specification
    • Manufacturer - Ford
    • Application - Race
    • Profile - BP320M
    • Power Band - 3500-8000rpm
    • Power Increase - N/A
    • Duration Inlet - 320 degrees
    • Duration Exhaust - 320 degrees
    • Valve Inlet Lift - 0.450" or 11.43mm
    • Valve Exhaust Lift - 0.448" or 11.38mm
    • Timing Inlet - 58-82
    • Timing Exhaust - 74-46
    • Full Inlet Lift - 102 degrees
    • Full Exhaust Lift - 104 degrees
    • TDC Inlet Lift - 0.193" or 4.90mm
    • TDC Exhaust Lift - 0.153" or 3.89mm
    • Valve Inlet Clearance - 0.008" or 0.20mm
    • Valve Exhaust Clearance - 0.010" or 0.25mm


    This is a NEW Camshaft not reprofiled. Designed for Naturally Aspirated engines utilising Mechanical followers.

    NOTE: When Fitting To A 2WD Head, Piper COSWASH Thrust Spacers Are Required.
